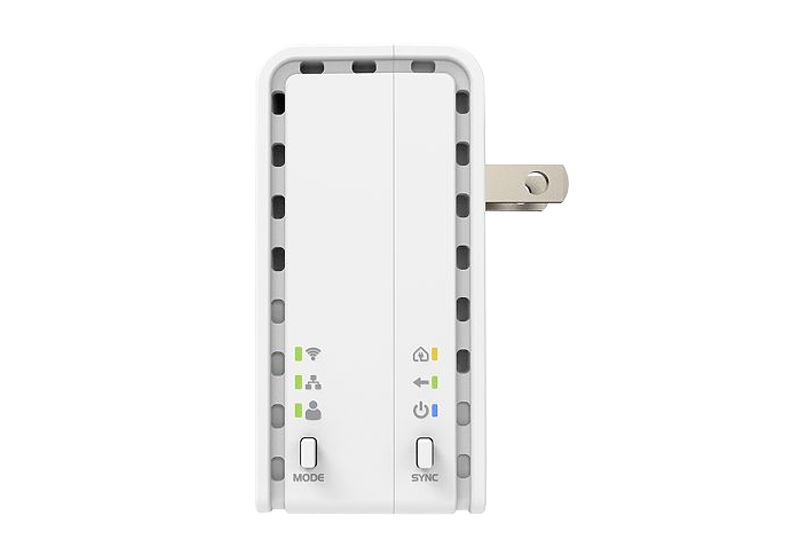

Mikrotik PWR-Line AP

Mikrotik Power line AP

1,750.00฿

A Wi-Fi router without limits: just plug it into a power outlet and you’re online! Data is carried over the AC 220V power line, with up to 8 connection points.

Categories: Mikrotik, WiFi Tags: Mikrotik, Network, WiFi

Description

Specifications

Details
Product code	PL6411-2nD
Architecture	MIPSBE
CPU	QCA9533
CPU core count	1
CPU nominal frequency	650 MHz
PLC chipset	QCA6410
Dimensions	50 x 68 x 33mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Suggested price	$42.00

Powering

Details
Frequency (Hz)	50-60
Max power consumption	6.3 W

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP00

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71
